For this project, I wanted to design from existing source material to design a LEGO® Star Wars™ set that balanced accuracy and display value with the strength and playability of a large scale LEGO® playset. With the last official minifigure scale version of the Nu-class released in 2009, I wanted to explore what a modern interpretation of the set could look like.
Designed entirely in BrickLink Studio over roughly two weeks, the model features folding wings, retractable landing gear, an opening cockpit and a detailed interior with space for the full minifigure lineup. Custom minifigure prints were created and adapted in Procreate and applied using PartDesigner.
Using references from across Star Wars media, the design was continually refined to better capture the distinctive proportions of the original ship while remaining strong, playable and achievable within the LEGO® system. Some proportions were deliberately compromised to manage scale and piece count, while later iterations improved the accuracy of the wings and overall silhouette. I intend to physically build and test the model in the future, using what I learn to improve the design further.

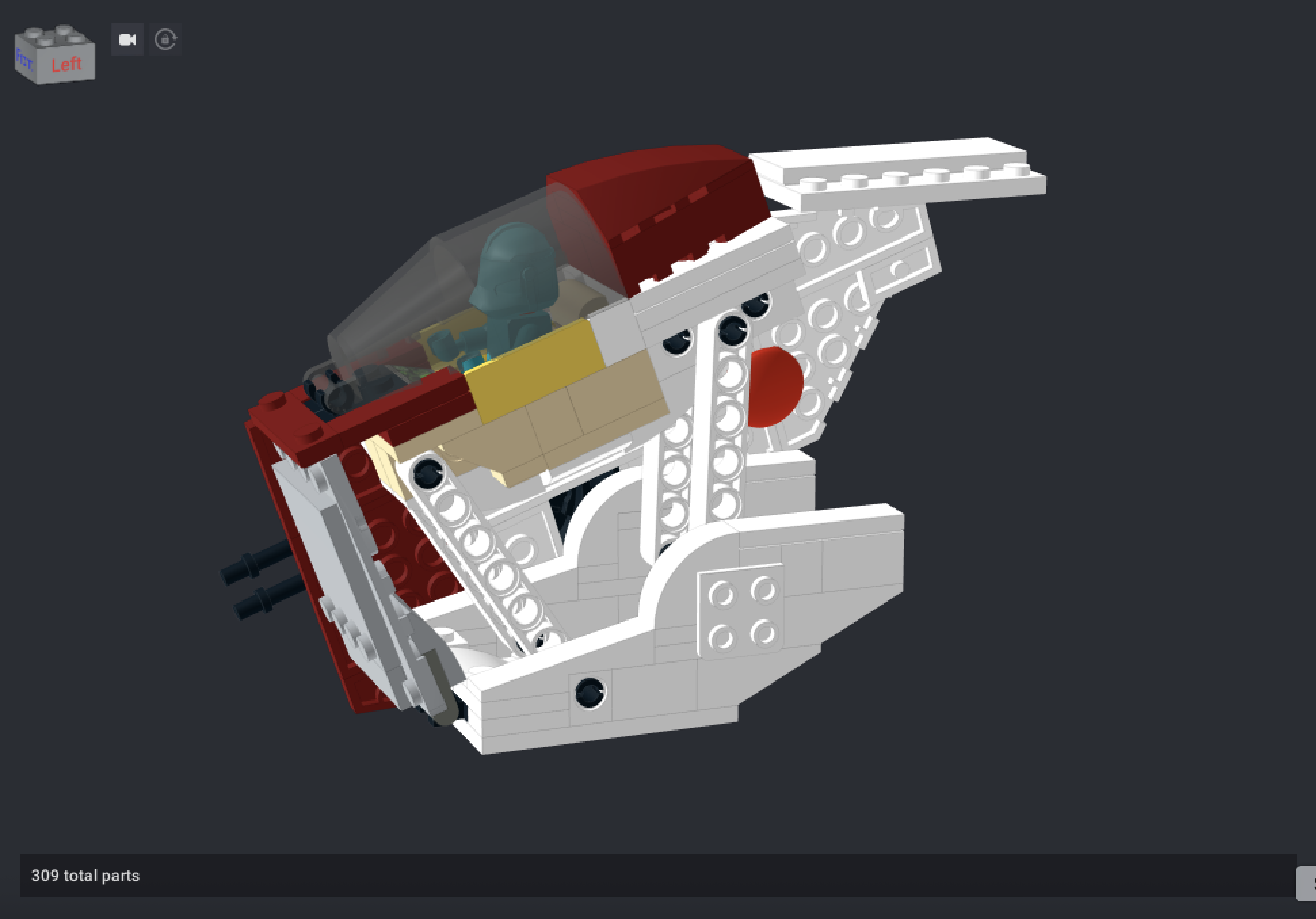

Starting with the cockpit, this established the scale for the set

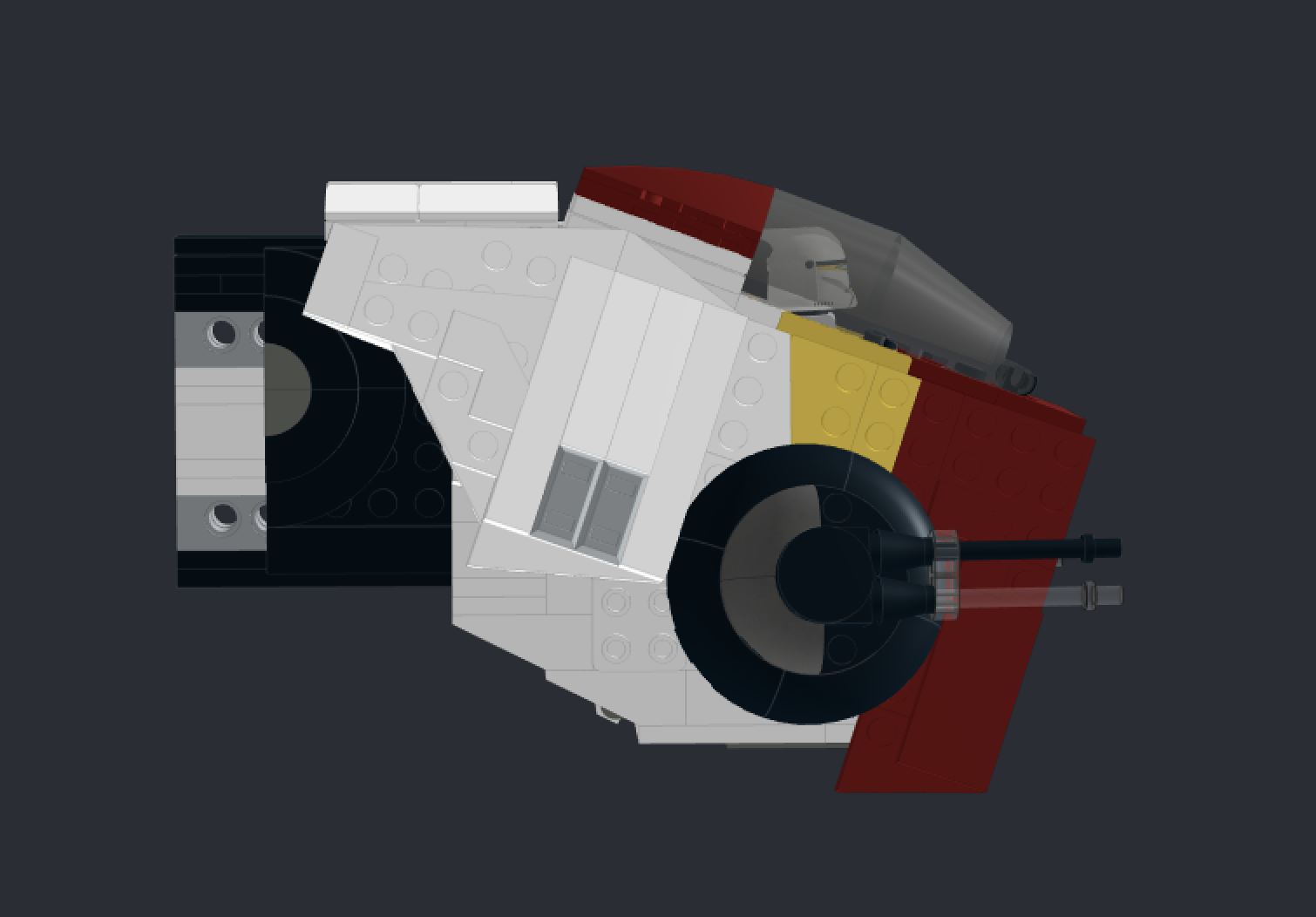

Completed cockpit build

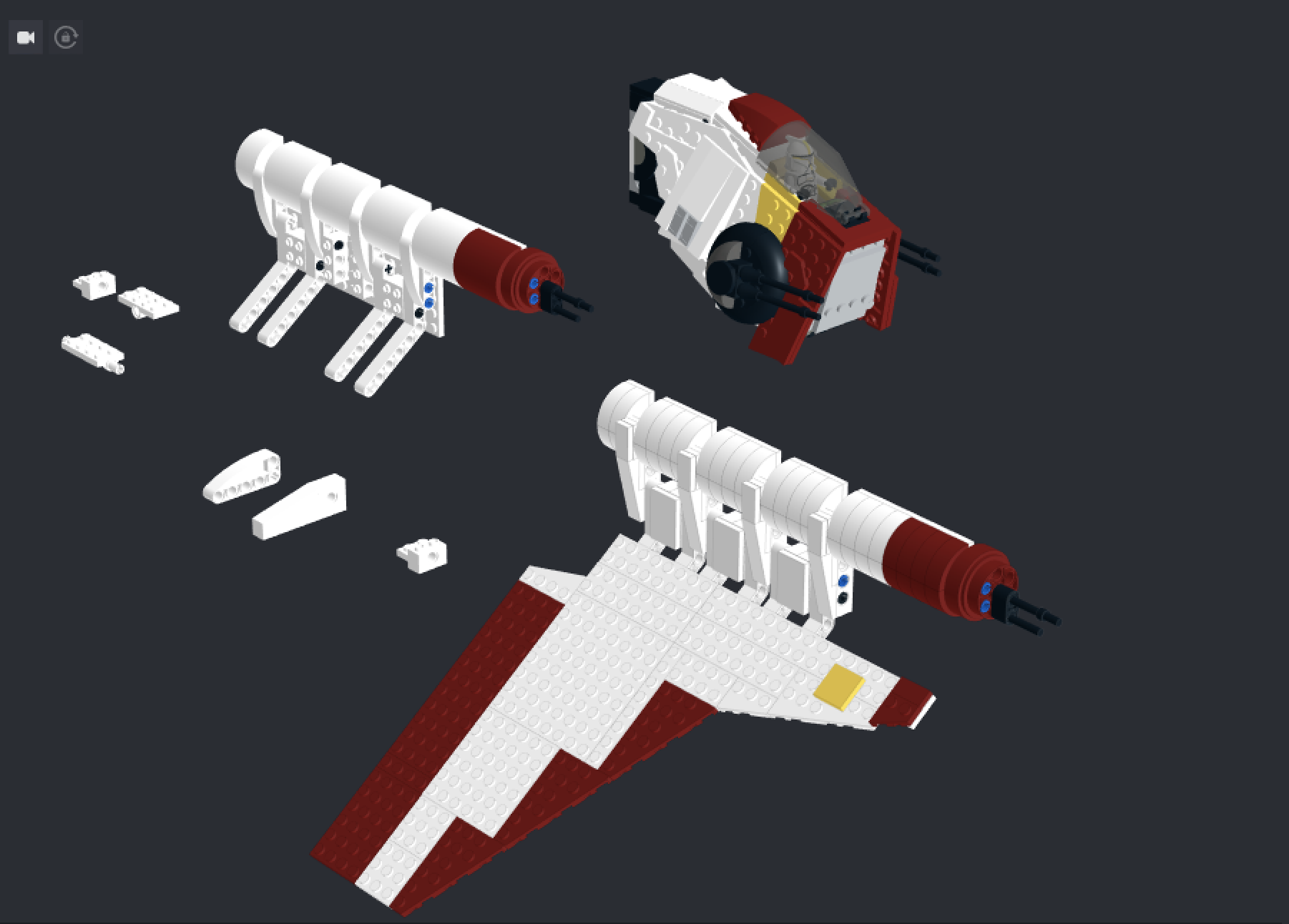

Designing the engines and wings

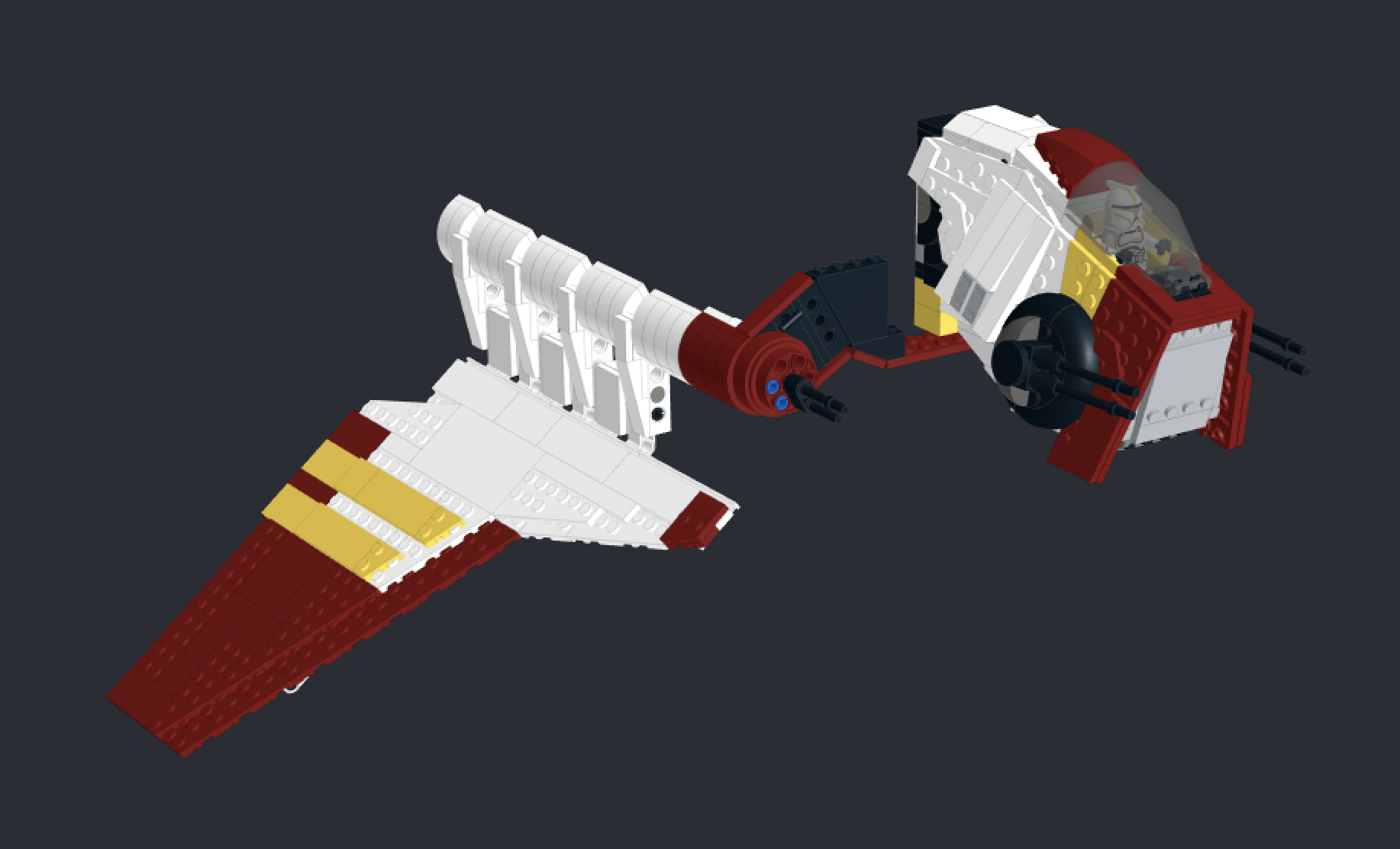

Attaching the engines to the rest of the build

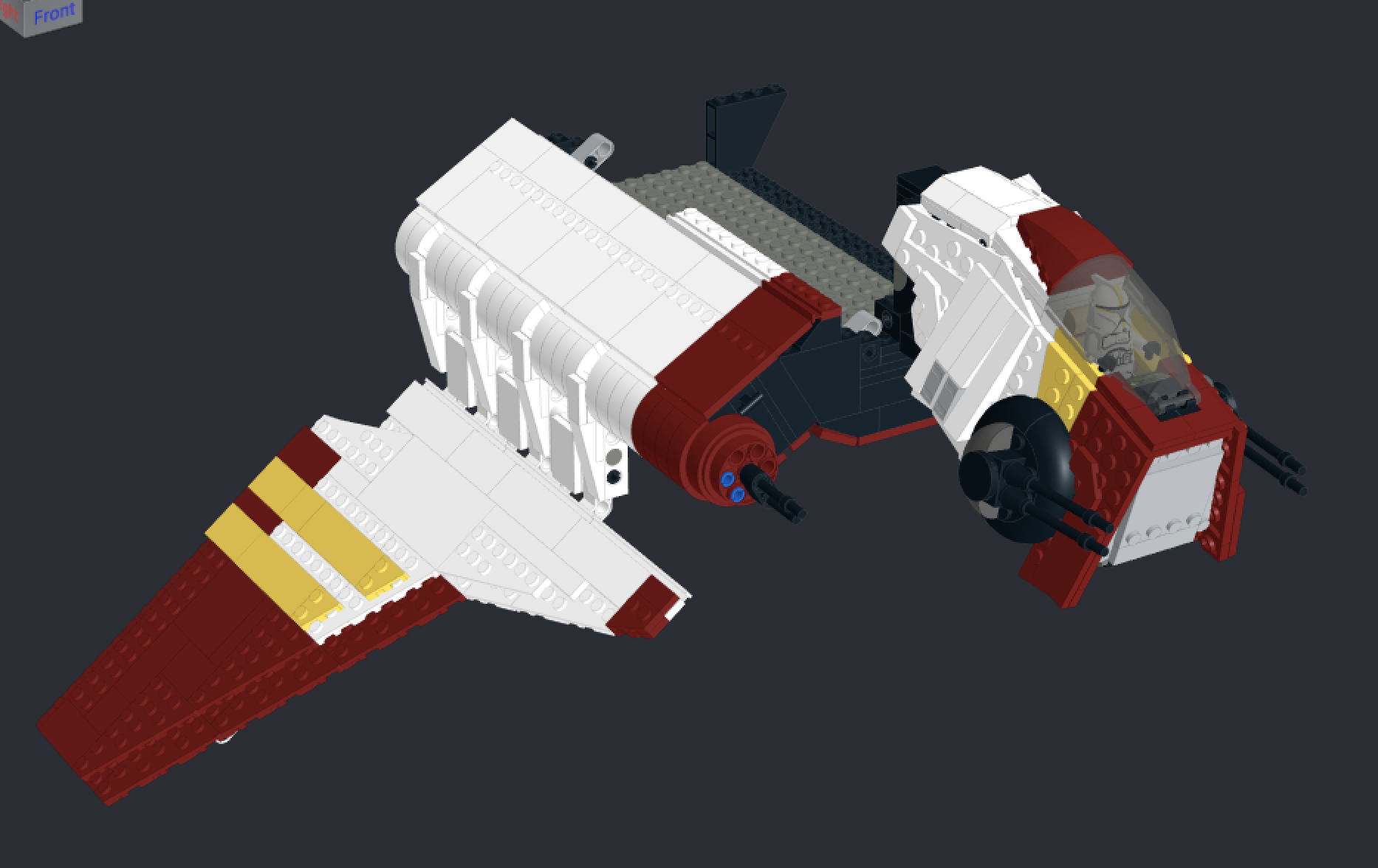

Building up the body

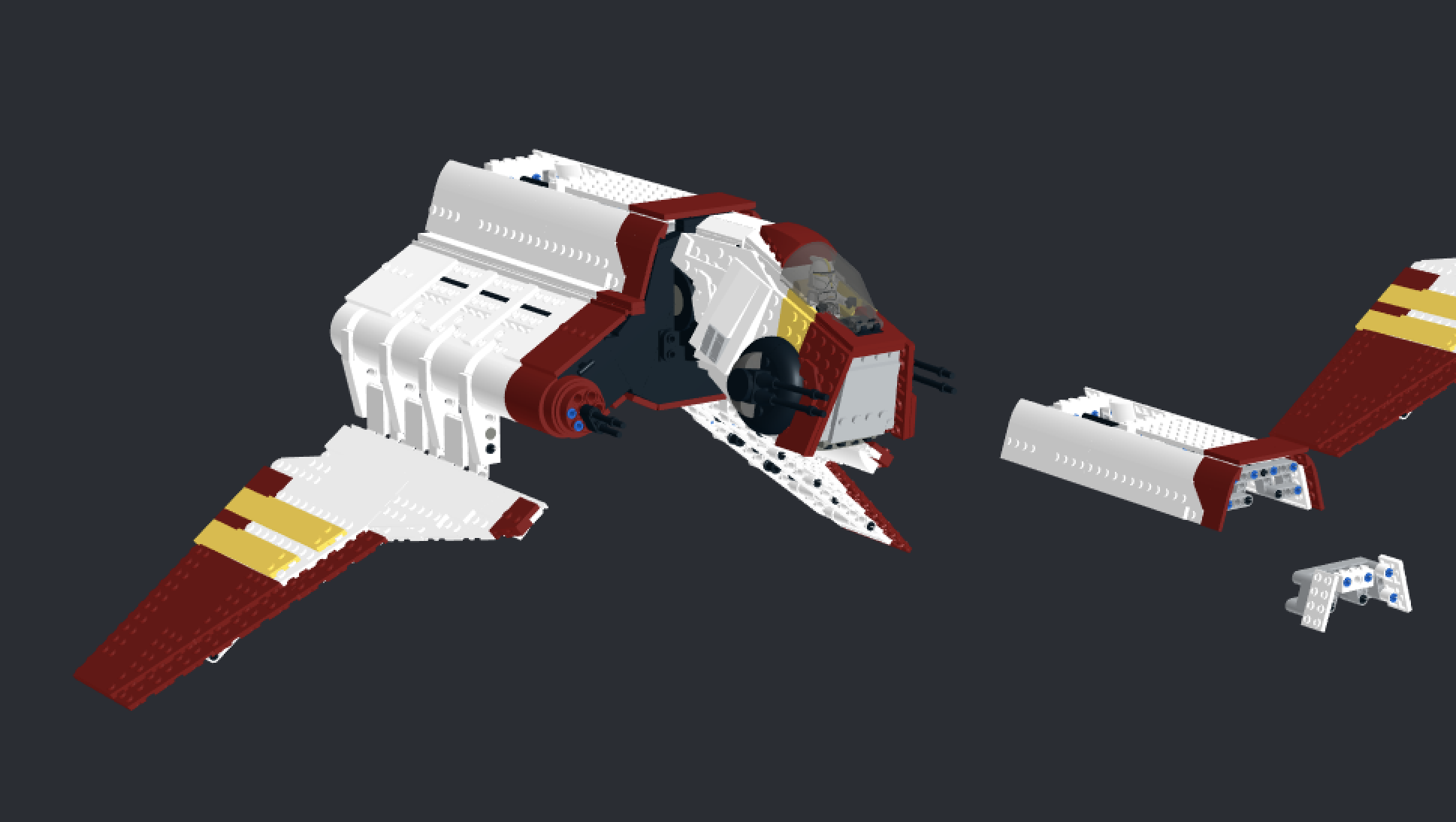

I wanted to make the roof detachable for interior access

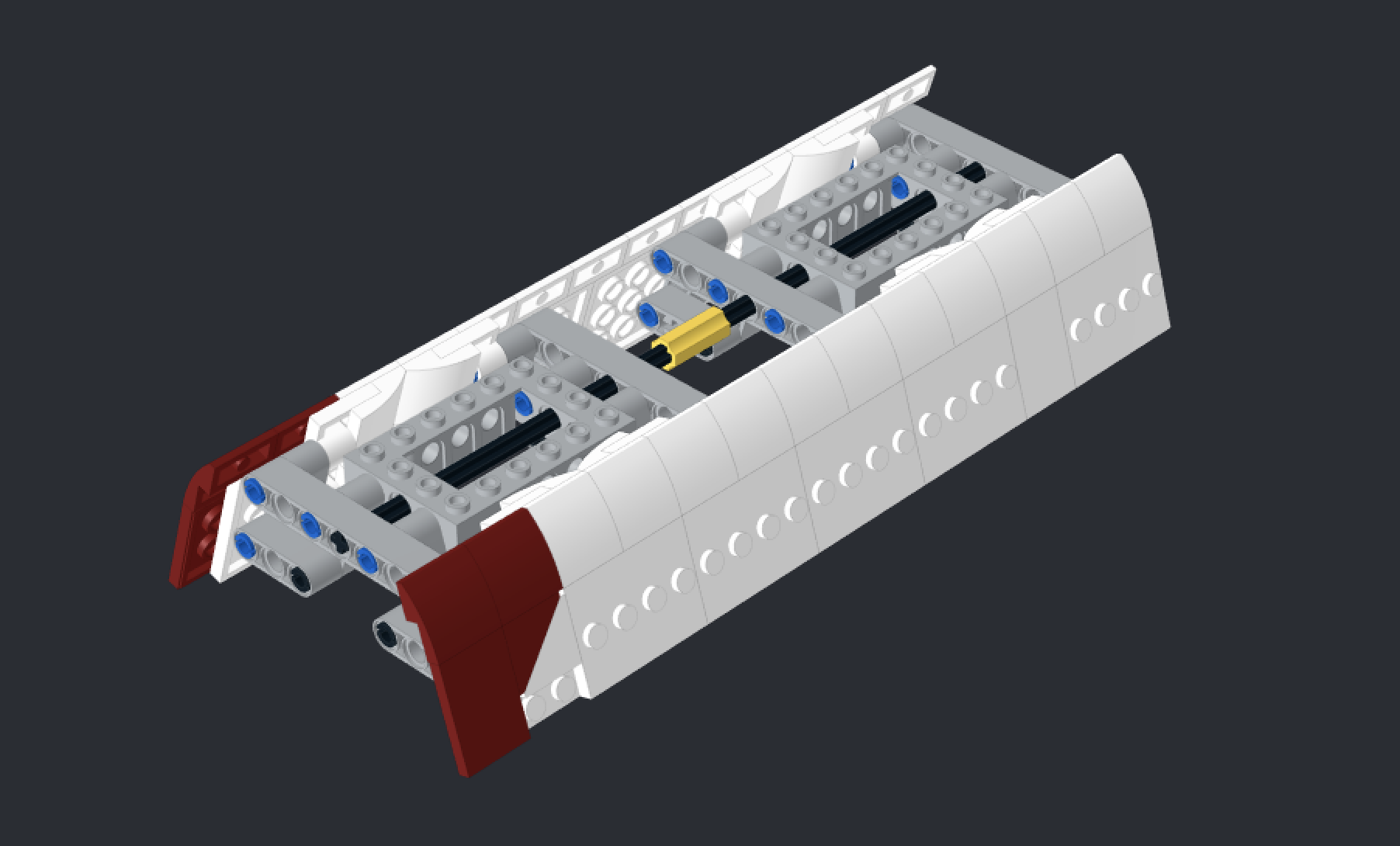

During the design process, it was really important to me that the final model was strong and stable

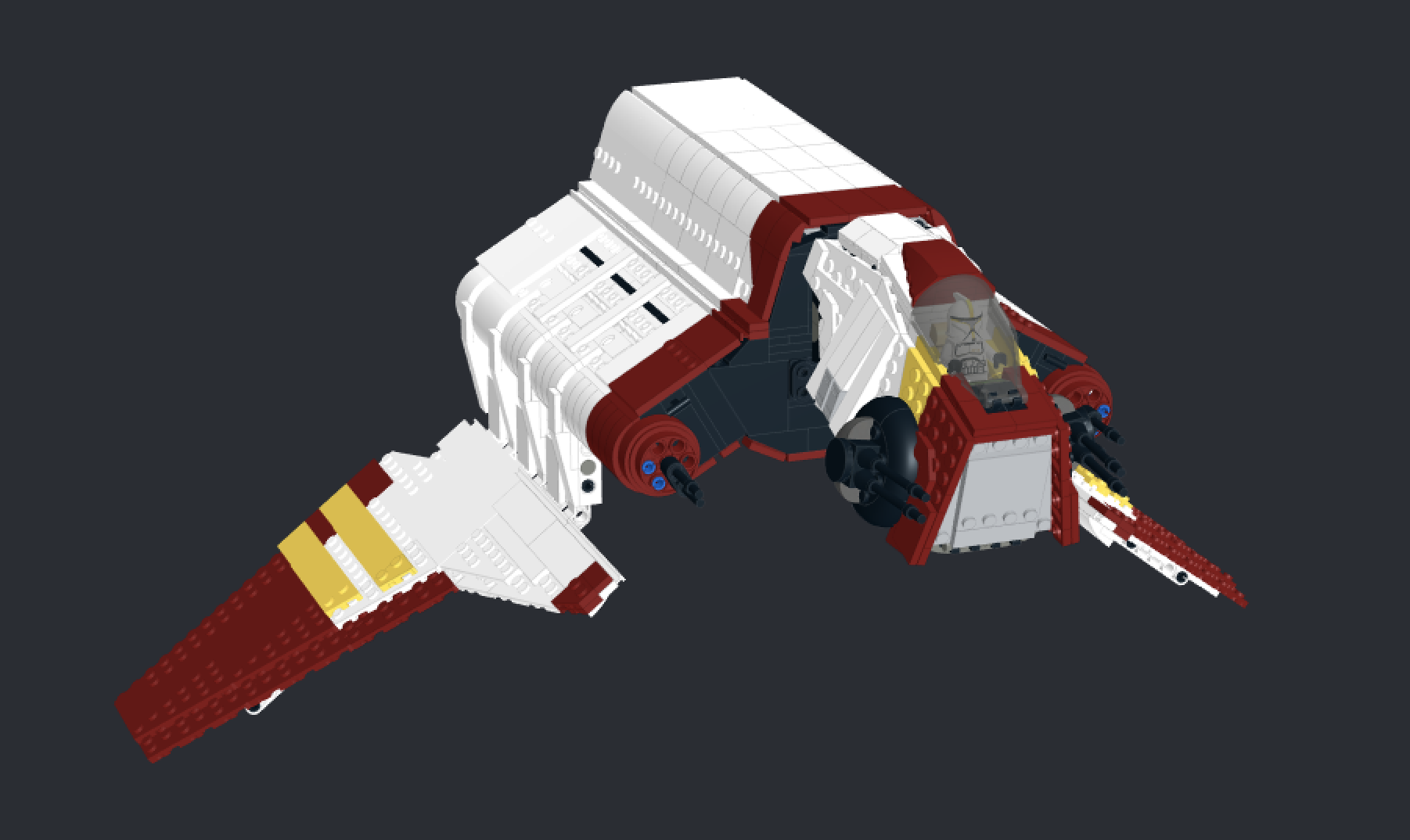

Designing the roof module to connect/disconnect from the body

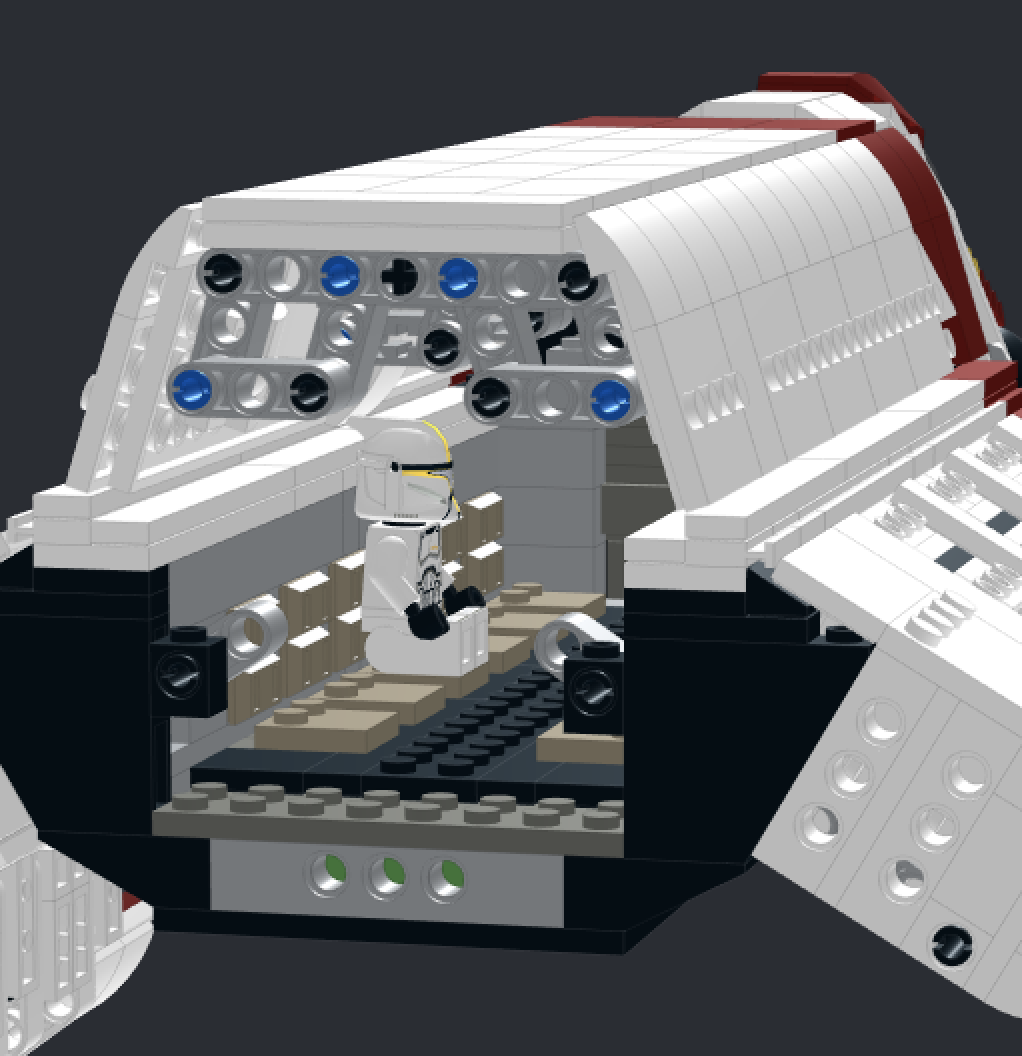

Establishing the interior details

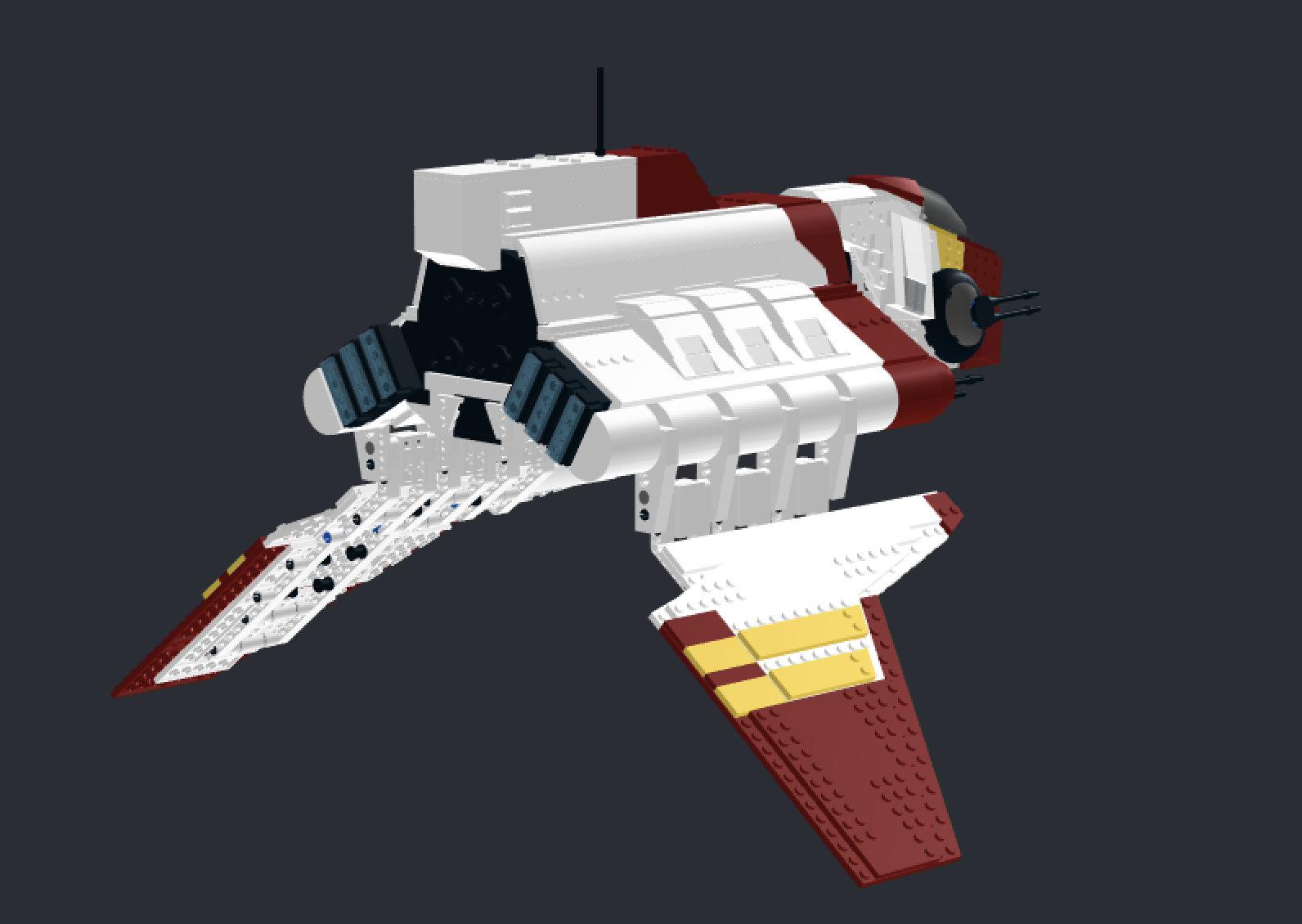

Rear engine modules

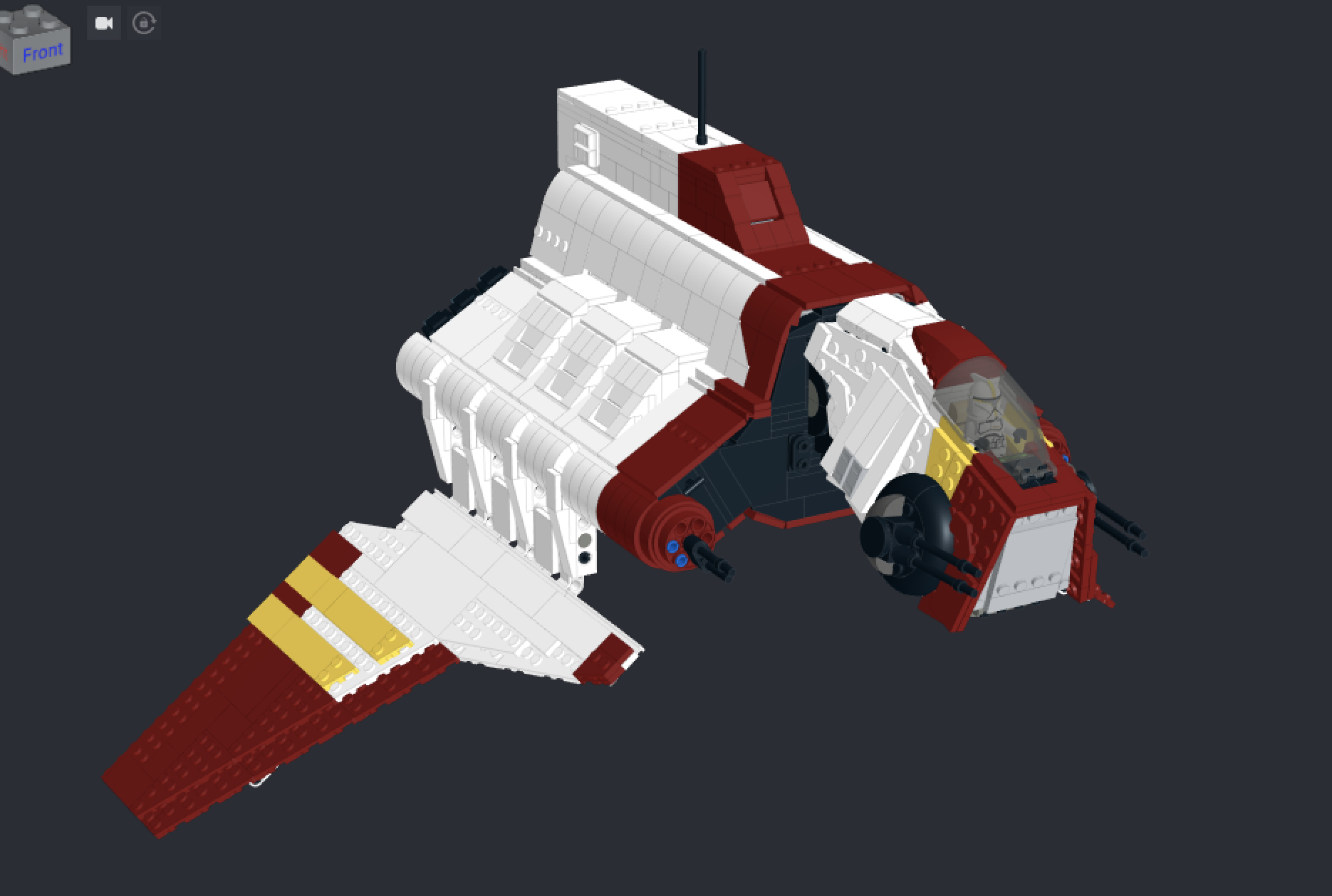

V1 Final model
Designing decals using Procreate for custom minifigure prints

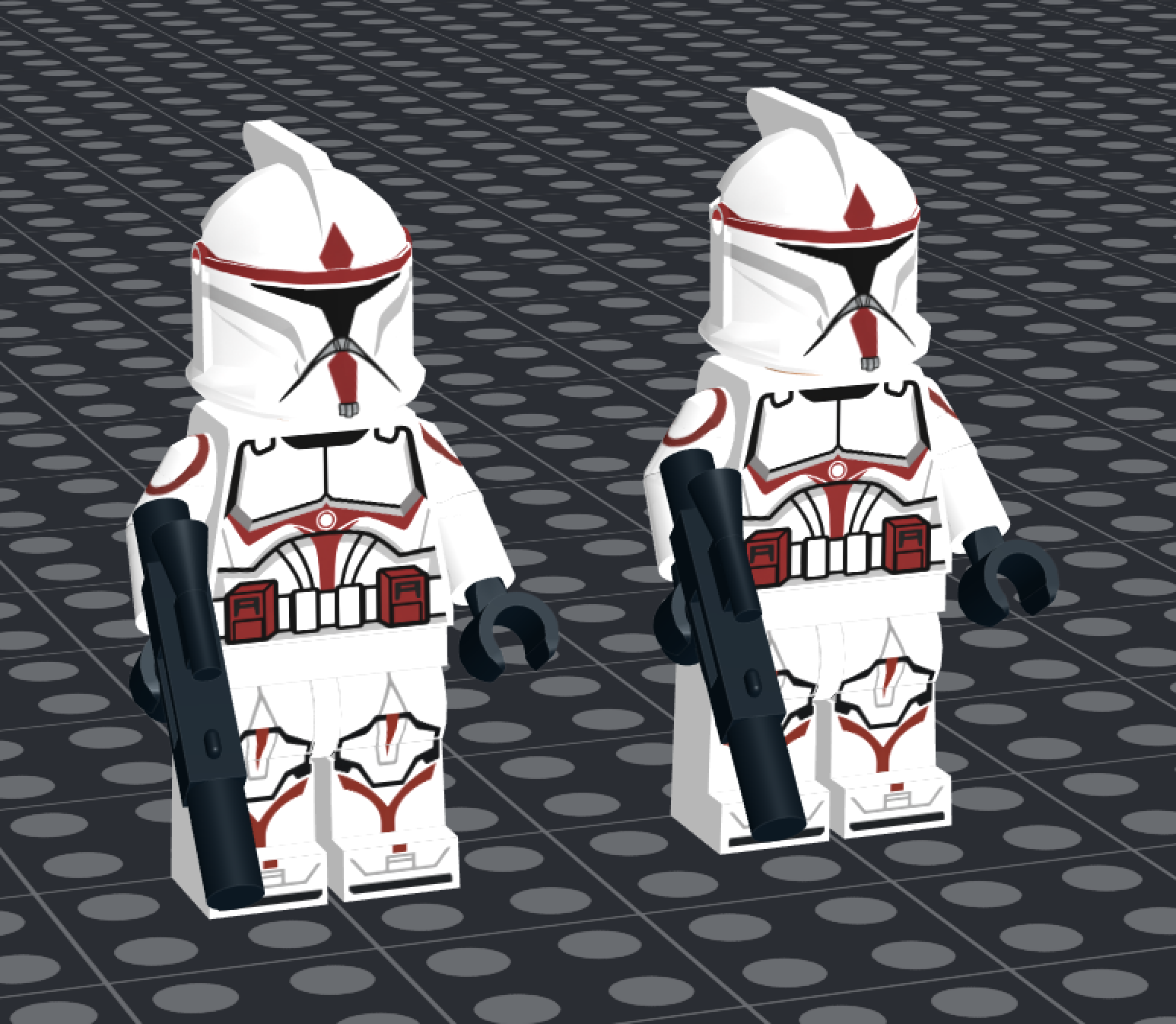

Decals applied and uploaded into Bricklink Studio through Parts Designer
This was originally supposed to be the final set design, but the wings just looked too stubby relative to the body so I extended them slightly
Final model
Landed formation
Opening cockpit
Retractable landing gear
Interior space with room for all minifigures
Minifigure lineup includes Mace Windu™, Commander Stone, a clone pilot, and 3 Coruscant Guards™. Mace Windu prints sourced from Mecabricks. Remaining custom prints created and adapted by me
Front Packaging Concept. AI-assisted background and lighting. Model, composition and packaging design by me
Rear Packaging Concept. AI-assisted background and lighting
This is an unofficial fan-made LEGO® Star Wars project created for portfolio purposes only. LEGO® is a trademark of the LEGO Group, which does not sponsor, authorise, or endorse this project. Star Wars and related properties are owned by Lucasfilm Ltd. and The Walt Disney Company.
